GRATES FOR WITH FLANGES WITH 2" 4"

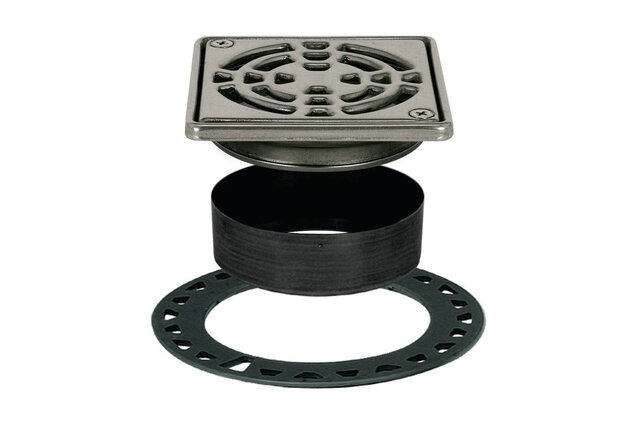

Schluter®-KERDI-DRAIN is a shower drain with an integrated bonding flange that provides a large contact area for a secure connection to the KERDI waterproofing membrane at the top of the assembly.
Grate available in a wide range of finishes and colors in stainless steel or anodized aluminum, as well as a tileable option
Available in five stylish designs: FLORAL, CURVE, PURE, CLASSIC, and CONTOUR
Integrated sloped bonding flange available in ABS, PVC, or stainless steel allows for a secure, topical waterproofing connection
ABS and PVC flanges have a 2" or 3" outlet
Stainless steel flange has a 2" or 3" no-hub outlet or a 2" threaded outlet
Drain grate can be laterally adjusted to fit the layout of the tile grid and leveled to the tiled surface
Accommodates wide range of tile thicknesses: 1/4" (6mm) to 1-1/4" (32 mm)
Tamper proof screws and wrench also available
