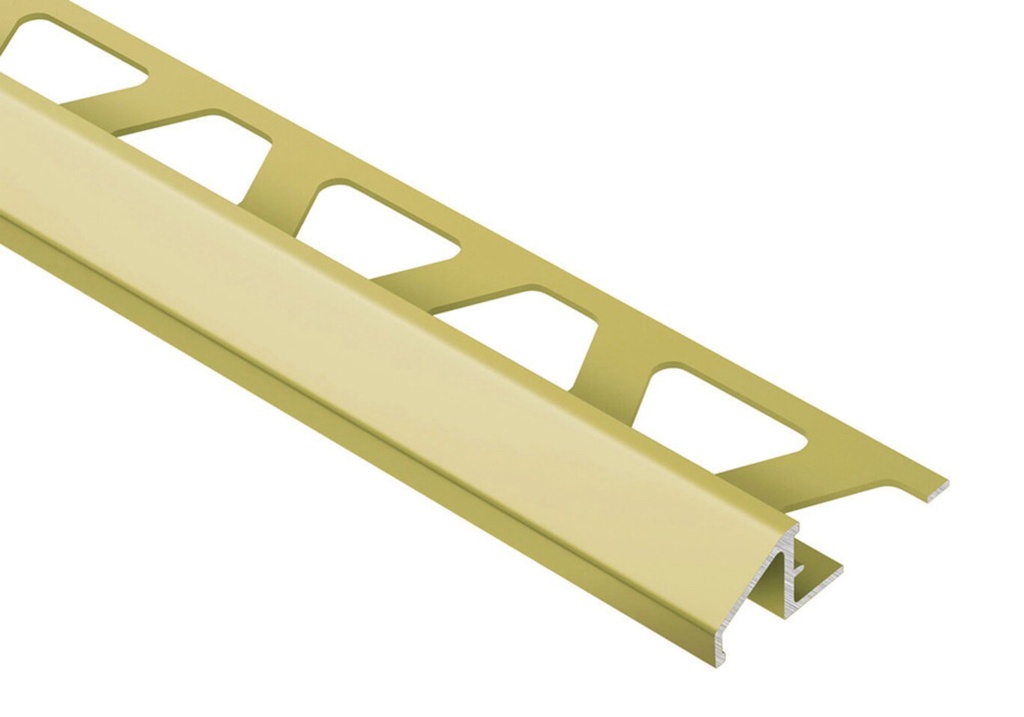

Satin brass anod. alu. (AM)
Schluter®

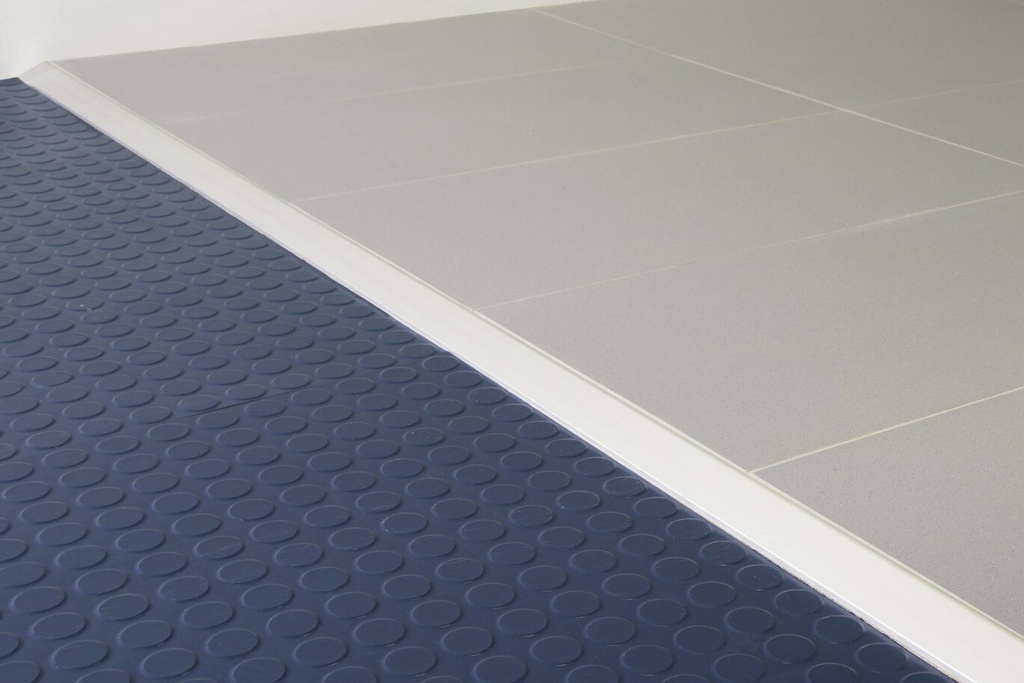

-RENO-U is designed to protect
tile edges and provide a smooth transition
between tile coverings and floor coverings
at lower elevations or finished concrete. The
sloped surface eliminates trip hazards and
the leading edge of the profile abuts the
lower surface covering. RENO-U in anodized
aluminum features an integrated joint spacer
that establishes a defined joint cavity between
the tile and the profile.
Note: When leading edge abuts lower surface
covering, sizes 20 mm (3/4") and 17.5 mm
(11/16") are not ADA-compliant. When leading
edge rests on top of lower surface covering,
sizes 20 mm (3/4"), 15 mm (9/16"), and
17.5 mm (11/16") are not ADA-compliant.
Technical Note: ADA requirements regarding
transitions between surfaces of different
heights:
• Up to 6 mm (1/4") - no special requirements
• 6 mm (1/4") to 12.5 mm (1/2") - slope ratio, 1:2
• More than 12.5 mm (1/2") - slope ratio, 1:12
